Product details
● Gigabit Ethernet interface, providing 1Gbps bandwidth, with a maximum transmission distance of up to 100m;
●256MB onboard cache is used for data transmission or image retransmission in burst mode;
●Support multiple modes such as software triggering, hardware triggering, and free running;
● Supports ISP functions such as sharpness, noise reduction, gamma correction, lookup table, black level correction, brightness, contrast, etc;
●Supports multiple image data formats for output, ROI,Binning, Mirroring, etc;
● Compliant with GigE Vision V2.0 protocol and GenICam standard;
● Supports DC6-26V wide voltage power supply;
●Compliant with CE, FCC, RoHS certifications.

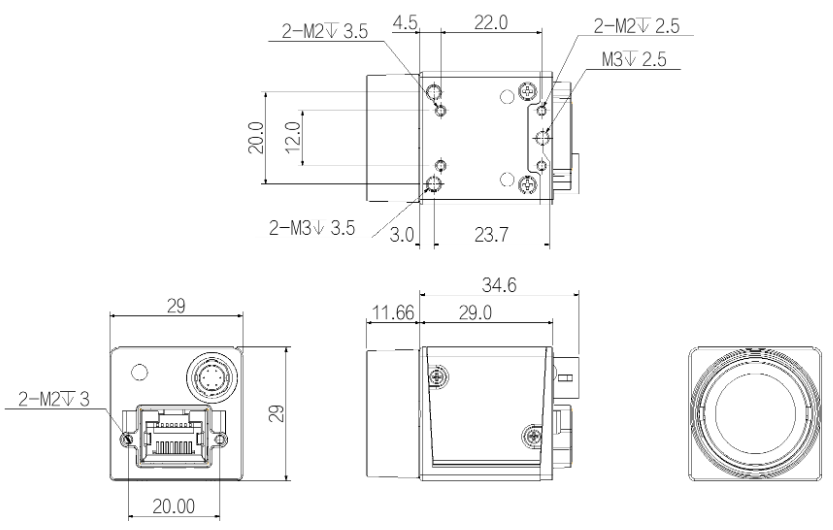

Dimension
Product parameters
|
Basic parameters |
|
| Sensor | AR0135 |
| Sensor type | 1/3″CMOS |
| Shutter type | Global |
| Resolution | 1280 × 960 |
| Frame rate | 54 fps |
| Bit depth | 12 |
| Black and white/color | Black and white |
| Pixel | 3.75 μm × 3.75 μm |
|
Image parameters |
|
| Pixel | 1.2MP |
| Signal to Noise Ratio | 40.7dB |
| Dynamic range | 71.1dB |
| Image Format | Mono8/10/10Packed/12/12Packed |
| Binning | Support |
| ROI | support |
| Gain | 1～32 |
| gamma | Range 0~4, supports LUT |
| Shutter exposure | 18.7μS~1S |
| Image acquisition mode | Software triggered/hardware triggered/free running |
| SPC | support |
|
Performance parameter |
|
| Configure channels | Support saving custom configurations for 2 groups of users |
| Cache | 256MB |
|
Interface parameters |
|
| Interface | GigE |
| GPIO Interface | 6-core Hirose interface; 1 optocoupler isolated input, 1 optocoupler isolated output, 1 configurable input/output without optocoupler isolation |
| Lens interface | C-mount |
|
Power supply parameters |
|
| Power supply mode | DC power supply through Hirose interface, voltage range 9V~24V |
| power consumption | 12V≈2.8W |
|
Structure parameters |
|
| Product size | 29mm * 29mm * 29mm |
| Net weight | 60 g |
|
Environmental parameters |
|
| Storage temperature | -30℃～+80℃ |
| operation temperature | -30℃～+50℃ |

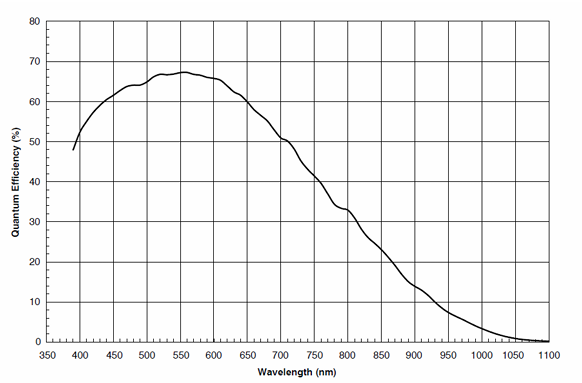

Spectral Curve
